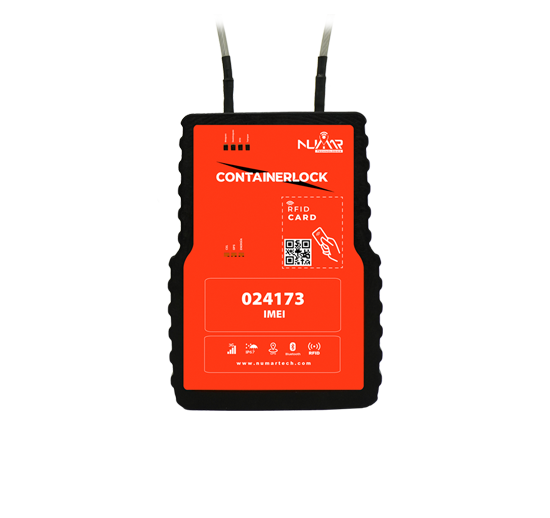

An integrated system incorporating an electronic steel-cable lock or seal, highly resistant to impact, vandalism, and extreme environmental conditions, allowing real-time protection, tracking, and status monitoring of cargo in transit. Used in cargo containers, vans, trucks, and all types of mobile assets. Also usable in countless security applications, securing and protecting high-value assets — both mobile and fixed — as well as controlling and monitoring access to doors and vulnerable or hard-to-reach spaces.
Specs: 3G | IP66 | GPS | RFID | Bluetooth
General specifications: 19,200 mAh rechargeable lithium internal battery. Operating voltage 8-32 VDC. SIM card size 2FF. Operating temperature -15 to 60°C. Protection rating IP67.
Logical specifications: periodic position reports. Typical alerts: cargo start/end, movement start/end, overspeed. Storage buffer up to 3,000 transmissions. Remote OTA command control. Power-saving modes.
Physical specifications: internal accelerometer. Top status LEDs (red=closed, green=open, blue=RFID open permission, yellow=cable-cut indicator). Bottom status LEDs (red=power, green=data network, blue=positioning). Weight 2.14 kg. Dimensions 20cm (h) x 6.5cm (w) x 14.5cm (l).
